New Model
1600 Series sets now available for IP Office and ACM.
Wireless IP
IP Dect R4 inexpensive additions for wireless.
New Mobility
Integrate mobile phones with One-X connect.
9600 Series
New 9670G H.323 SIP IP Phone & 9600 series available for ACM.

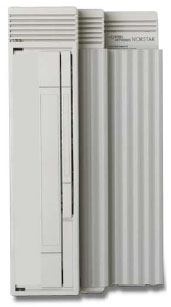

Nortel Norstar Compact ICS and CICS Phone System (Compact ICS)
Small businesses needing the basic
functionality of a business class phone system have
turned to the ICS product line for years and years.
Commonly known as the Norstar, the ICS line supports all
Norstart M7000 and T7000 Business series phones.
Currently at R7.1, customer could simply upgrade year to
year and add station and trunk interface cartridges for
BRI, Caller-ID, Analog Trunks, Analog Extensions,
Digital Stations and more. In the basic format of
4x16 or 4 lines by 16 phones, the ICS was a reliable
solution. Customer typically added basic voicemail
with the addition of CallPilot 100 or CallPilot 150.
Older customers utilized simple Norstar Flash for basic
voicemail features. Offices with NO growth
potential leveraged the fixed Norstar Compact 3x8.
In any case, a typical Norstar customer was one with no
growth typically over 8 lines x 24 phones.
Customers looking to integrate a PRI voice T1 must be on
MICS processor.
Nortel Norstar Modular ICS Phone System MICS
For small to medium allows growth
from 32 up to 272 ports. Integrate ISDN-PRI or T1
with a PRI enabler and T1 card. The MICS allows
digital M7000 and T7000 as well as analog extensions and
ATA adapters for analog devices. Current R7.1
version is available as well as digital and analog
station modules. Contact CCS about support and
migration strategies to BCM or business communication
manager as well as Avaya IP Office. Special
leasing promotions for migrations to Avaya IP Office are
currently available.
Nortel BCM 50
Considered the small office Nortel
solution that is for no growth offices or remote
locations. Up to 4 lines by 12 digital extensions,
4 analog extensions, and 32 IP endpoints. Limited
embedded voicemail allowed. This solution was
introduced to migrate ICS and CICS customers to a better
integrated solution and VOIP. You can reuse some
digital phones from your old Norstar.
Currently BCM 50 R3.0 is available.

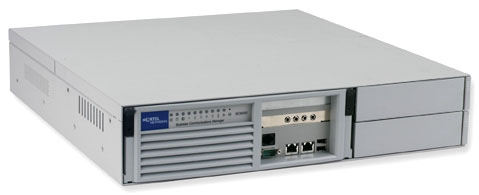

Nortel BCM 200 and BCM 400
For medium sized customers the BCM
200 and BCM 400 have evolved into the replacement for
Nortel MICS system. Standard pots lines, T1, VOIP,
digital and analog phones are allowed on this solution.
BCM expansion units and insert cards are available for
future growth. BCM utilizes 1100 series ip phones,
2050 ip softphone, 1200 ip series ip phone, 2000 and
i2000 series ip phone and T7000 digital sets as well as
wireless options. Add licensing to turn on things
like voice and networking.
Nortel Networks Meridian 1 Option 11C
Enterprise businesses have turned
to the work horse of Meridian phone systems for a number
of years. The Meridian Option 11C is ideal for 60
to 800 users. The M2600 and M3900 series digital
phones are compatible with Option 11 C. Migration
paths are in place currently to move to Nortel
Communication Servers and Avaya Communication Manager
Media Servers with Session Managers SIP for multiple
gateways. This allows your business to leverage
VOIP, call center ACD functionality, unified
communication, and a hybrid environment of analog,
digital and IP endpoints. Nortel also had a Option
Mini for a large enterprise with smaller growth capacity
while still leveraging feature set. Add conference
bridge servers, ACD, queues, call center, contact
center, wireless server, IP phones, SIP, voip, h323 and
more.

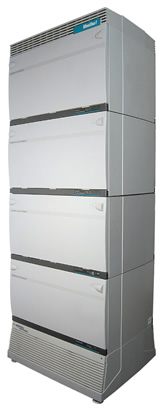

Nortel Networks Meridian 1 Option 61C and Option 81C for large enterprises
For environments that need to
support from 200-2000 users the Option 61C is used which
allows the additional of remote and wireless gateways.
If you need even further growth, the Option 81C allows
up to 16,000 users. For customers looking for rack
mount solutions there has been a migration strategy put
in place to move customers to Communication Server,
CS1000, CS2100, CS2000 as well as Avaya Communication
Manager and Aura Session Manager with SIP hooks.
All Nortel solutions as well as Nortel Option 51C
new and legacy switches are being
supported today by Converged Communication Systems.
Contact one of our support representatives now.
Communication Server 1000 and CS1000, CS2000, CS2100
The communication server is the
evolution of the Nortel Meridian Option switches and has
over 750 call processing and telephony features.
Highly scalable rack mountable for enterprises up to
22,500 IP users. Protect some of your Nortel
legacy investment with the Communication Server.
If you are looking for a hybrid switch, the CS product
line is the way to go. If you have multiple sites
leverage Avaya Aura Sip Session Manager to connect up to
Nortel locations. Other solutions include
application gateway 2000, communication server 2100,
hospitality messaging server 400, VGMC, media gateway
3200 trunk gateway, media gateway 3500 trunk gateway,
centrex ip, media gateway 9000, media gateway 4000,
application gateway 1000 and many other solutions
including the entire Bay and Bay Stacks Network data
solutions.
Nortel Meridian M2600 Series Digital Telephone Sets
M2008 Basic, M2008HF handsfree,
M2008 Display, M2616 Basic, M2616 Display, M2216 ACD
call center phones and M2250 attendant console digital
phones.
Nortel Meridian M3900 Series Digital Telephone Sets
M3901 Entry Basic,M3902 basic,
M3903 enhanced, M3904 professional, M3905 call center
and meridian key side console accessory module.
Nortel Norstar Business Terminals T7000 Series Digital Telephone Sets
Norstar T7100, T7208, T7316E,
T7316, and T24 key side console.
Nortel IP Telephones for BCM 1100 Series
Nortel IP deskphone 1110, 1120E,
1140E, and expansion side console module for BCM and
larger switches.
Nortel IP Phones 2100 series and i2000 series
Nortel i2001, 2001, i2002, 2002, i2004, 2004, 2007,
nortel ip phone key expansion for reception. Available on BCM and Communication
Servers as well as Option.
Nortel IP Phones 1200 Series
Nortel ip deskphone1200 series. Models 1210, 1220
and 1230 are available for BCM.
Nortel IP Softphone 2050
Available for Communication Server 1000 release 3.0+,
media gateway 1000b, BCM50, business communication
manager r2+, bcm200, bcm 400, SRG, survivable remote
gateway r1.5+, meridian 1 r3+ and others.
Nortel Wireless Norstar and BCM
Norstar T7406E and T7406. Compatible with many Nortel Network phone systems.
Norstar 3x8, 6x16, 8x24, CICS, MICS and BCM. There
are also IP wireless solutions available.

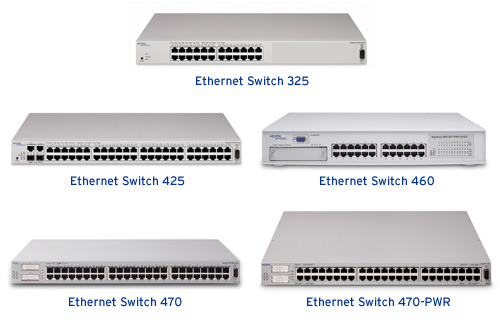

Nortel Ethernet Switch and Bay Networks Solutions
Ethernet and data switches managed and unmanaged as well
as gigabit and power over ethernet. Ethernet 325,
425, 460, 470, 470-PWR. Other lines include 50,
110, 120, 1010, and 1020. Contact CCS for
more information on data switches and VLAN and QOS
assistance.
Converged Communication Systems Migration Promotions and Nortel Maintenance Center
The Converged team is certified and
knowledgeable on all Nortel product lines, Avaya, Cisco
and other data solutions. Our voice and data
engineers are ready to assist with your telephone and
data network. Ask about our migration promotions
for existing Nortel customers to leverage the Avaya
relationship and options to migrate call servers or
leverage Avaya Aura to integrate Nortel to Avaya
solutions via SIP. Upgrade to T1 service from POTS
lines and receive bundled rate promotions .
Convert your existing voice ISDN-PRI and data T1
services or point-to-point T1 service to MPLS and see
the savings roll in!
