Avaya Partner Advanced Communication Telephone System or Partner ACS
Partner is ideal for small growing businesses that need basic phone system features. Originally the AT&T Partner II and Partner Plus, the Partner ACS has evolved into the Partner Endeavor, Partner Small Office Edition and Partner ACS R1.0.
This system offers the following benefits:
- 5-25 extensions and up to 48 phones
- Voice telephony functionality
- Flexible
- Easy to use
Partner ACS Architecture for Small Illinois Companies and Nationwide Businesses
The Partner ACS processor today comes standard with 5 lines and 9 extensions. If you need growth, simply add a 2- or 5-slot cabinet to grow to 21 lines by 44 extensions or 31 lines and eight extensions.
The Partner ACS allows POTS lines or fractional integrated T1. The Partner Legacy Expansion modules include the following:
- 200
- 200E
- 200EC
- 400
- 400E
- 400EC
- 308EC
- 012
- DS1
- VoDSL
- And others
Each processor comes with 2 PCMCIA slots for remote card, backup/restore card, small 4 box voicemail or 16 box large voicemail card, and additional fixed contact closure and an SMDR port for call accounting hookup.
Partner ACS Basic Features
The Partner system allows for standard business features that every small to medium-sized office needs, including the following:
- Caller ID
- Send all calls
- Distinctive line ringing
- Speed dialing
- 5-party conference calling
- Remote call forward
- And more
These features allow your small business to be more productive and efficient. The Cell Phone Connect feature (only available via T1 module) allows for simultaneous ringing of cell and desk phone.
Partner Telephone Sets
The earlier Partner systems allowed for MLS line of Partner sets, which was the first inception of Partner phones. Those can still work on the Partner ACS with some minor feature limitations.
Partner Series 1 or Eurostyle sets came out with the Partner ACS R1. With the redesign of the Partner ACS processor with R7.0, the revamped Partner Series 2 style phones came out.
Avaya Partner Series 2
Partner Series 2 phones are available:
- Partner 6 Button with Display
- Partner 18 Button with Display
- Partner 34 Button with Display
- 48 Call Assistant or Console
Avaya Partner 5 Slot Carrier For Further Expansion and Partner Voicemail Options
Partner allows you to pay as you grow. The processor can be a standalone, reside in a 2-slot or 5-slot cabinet.
Partner voicemail options come in a simple PCMCIA for simple voicemail and 1 attendant with 4 or 16 boxes. The Partner Messaging Module starts at 2 ports and grows up to 6 with flexible voicemail capacity (200). Legacy voicemail solutions included Partner Mail and Partner Mail VS.
Electrical - Control Unit
- U.S. and Canada: 90-130 VAC, 50-60 Hz, 3-prong outlet separate ground, separately fused at 15 Amps
- Other countries: 90-264 VAC (220 VAC fused at 10 Amps)
- Grounding to comply with Underwriters Laboratories (UL)1459
Avaya Partner Wireless and Cordless
Hook up any standard analog wireless phone to the Partner system or leverage the enhanced range Engenius Wireless solution for better range and feature functionality.
Partner 3910 wireless allows for the following:
- Multiple line appearance
- Hold
- Conference
- And more
The 3920 allows for more functionality. Otherwise, Plantronics wireless headsets are also available.
Avaya Partner Series 2 Display
Partner Series 2 phones feature an easier-to-read display.
Avaya Partner Release 8 Enhancements
Notable enhancements include the following:
- Absent display messages with "inspect to show"
- Hot keypad dialing that allows users to dial without picking up the phone
- Message alert notification that visually shows users new messages in mailbox (specific voicemail may be required)
- Personalized station and distinctive line ringing
With the onset of VoIP dynamic T1 and bundled rate plans, leverage these T1 packages to save money!
Integrated SMDI for CTI / TAPI

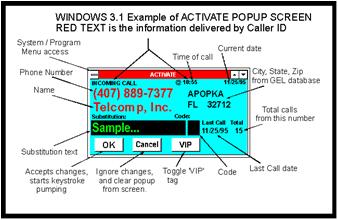

This includes optional support of third-party applications such as Telecomp's "Pickups," which is a screen pop app for Partner.
If your business requires CTI, TAPI, TAPI 2.1, TAPI 3.0, TSAPI, hooking up to a third-party IVR or database program, CCS recommends reviewing the Avaya IP Office family of solutions. The Avaya IP Office scales from 0-384 users and has a pay-as-you-grow architecture.
TAPI drives for local client workstation pops are free on this platform and this solution is very easy to integrate. SMDI PCMCIA card kit allows for this.
Avaya Partner Messaging Module R7.0 +

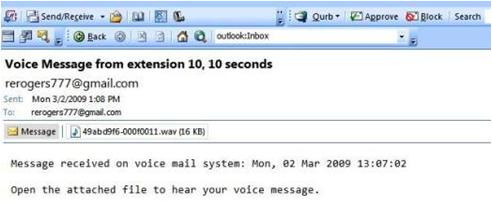

The PMR7 (also known as the Partner Messaging Mobule) has expanded unified messaging functionality.
Avaya SIP Gateway Support for Illinois SIP providers and nationwide

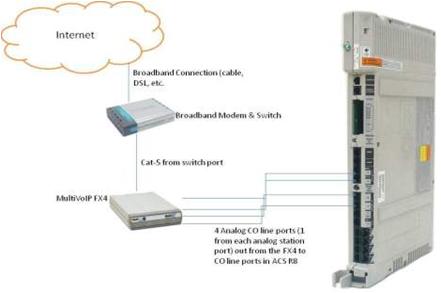

The Partner R8 supports external SIP gateway products:
- MultiTech VoIP FX gateway
- ADTRAN 908 and 924
- AudioCode, and Mediatrix SIP gateways
The SIP lines will terminate in CO ports. SIP trunking options from the service provider allow for lower costs in networking between multiple sites. Avaya Aura SIP session manager allows for the integration of different PBXs across the WAN or MPLS.

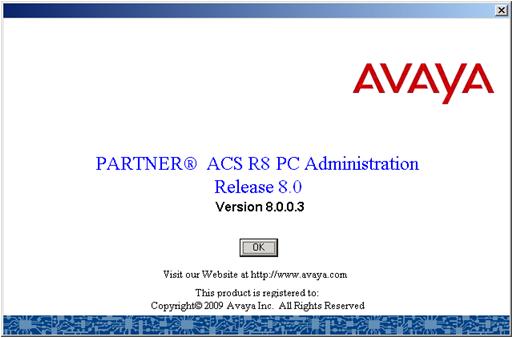

Avaya Partner PC Admin for R6, R7, R8
The Partner PC admin tool has been improved to provide more programming and maintenance options. Avaya discontinued G250 and G350 with the release of G430, which is more scalable. The G250 was used for remote offices or small offices that need enterprise features less than approximately 12 people. The G350 grew to about 72 people.
If you have a current G250 or G350 and need programming and maintenance support, contact your local CCS support and design specialist. If you are looking to migrate or upgrade your remote H. 248 gateways, CCS can plan a phased migration strategy.
Partner ACS 6 Button Display Series 2 (Partner 6D)
Partner Series 2 phones have an easy-to-read display for common areas and less used areas.
Partner ACS 34 Button Display Series 2 (Partner 34D)
The Partner ACS 34 Button Display is typically used for reception positions and positions that must see user status or busy lamp fields (BLFs) of other users.
Avaya Partner Messaging Module
Avaya Partner deluxe voicemail features include the following:
- Up to 6 ports
- 200 mailboxes
- Up to 4 attendants
- Unified messaging options
- Record a call (4 port required)
- Call screening
- Cascaded outcalling
- Personalized greetings
Avaya Small Messaging Options

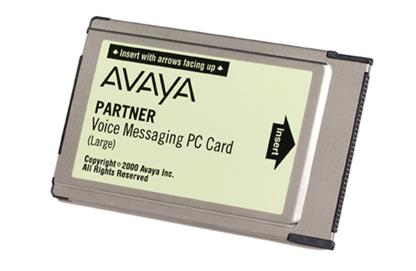

The Avaya Partner Voice Messaging comes in small and large options. The small is 2 ports by 4 boxes and the large is 12 boxes and 2 ports. This solution only has 1 auto-attendant shared.
If you need additional mailboxes, ports, or auto attendants, please review the Partner Messaging Module mentioned above.
"Partner Call Assistance (a.k.a., Partner DSS Side Console)
This allows for more busy lamp fields and programmable button options for reception positions.
Avaya Partner ACS Integration for VoSKY Technolgoies Exchange 9140

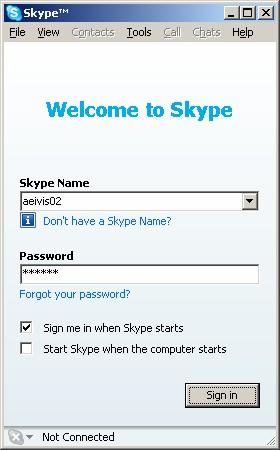

Exchange 9410 is a 4-port VoIP gateway that allows Skype integration from a Skype service provider to leverage special calling plans from your VoIP provider.
Avaya, Lucent, AT&T Merlin Legend and Merlin Magix Reusing Partner Sets
Customers who outgrow their Partner capacities can effectively re-use telephone sets on a Merlin Legend or Merlin Magix solution. If you currently have Partner sets on a Merlin solution and are looking to migrate, Avaya IP Office has taken over Avaya's small and medium sized presence. Ask us about migration and upgrade strategies for your Partner system.
Check your partner release and review feature enhancements.
